High quality 8up platesetter system

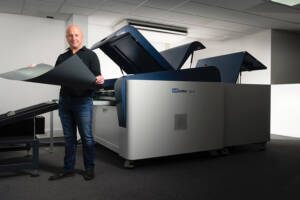

The EM Setter is a fully automated, highly productive 8 page thermal CTP system. Capable
of producing up to 55 8up plates per hour, the EM Setter offers a unique combination of
speed, automation, high image quality and economical cost of ownership.
Compatible with most 8up and 4up press formats
With a maximum plate size of 1163 mm x 940 mm x 0.3 mm, the EM Setter
is compatible with most 8up and 4up presses, whilst retaining the flexibility to
accommodate the smallest size, of 400 mm x 300 mm x 0.15 mm plates. Its
integrated punching system also enables the production of press-ready plates for
most commercial sheet-fed presses.
Fully automated plate loading
The EM Setter is equipped with a 4 cassette autoloader system with automatic
interleaf removal. Each cassette can hold up to 100 x 0.3 mm plates allowing it to
run unattended for extended periods.
High productivity and high quality imaging
The 256 channel “Spatial Light Modulator” imaging system is capable of exposing
up to 55 1030 mm x 800 mm plates per hour. The imaging head produces a sharp
edged distribution of energy resulting in high precision dot reproduction.
Low cost of ownership
The lasers and imaging head used in the EM Setter are supplied with a 3-year laser
warranty. The system also features a long life clamp design, reducing machine
maintenance down time.
Reduced environmental impact
The EM Setter encompasses the latest technologies to reduce energy
consumption during operation, minimising its impact on the environment.
